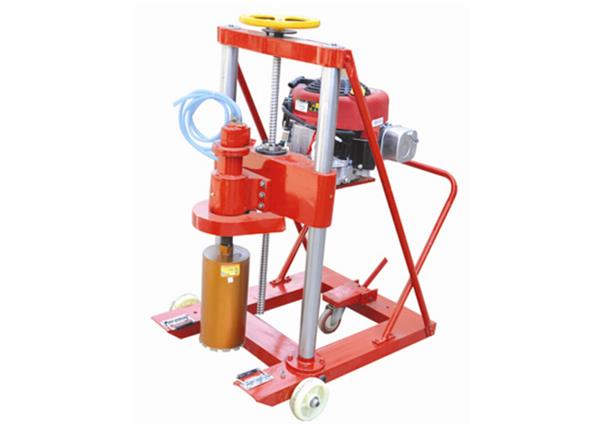

FZK-20 Concrete Core Drilling Machine

FZK-20 type core drilling machine adopts high-speed cutting technology, equipped with thin wall diamond drill,are widely used for drilling and coring in engineering construction, municipal engineering, equipment installation engineering and construction quality inspection project and other areas.

Please call:
+86-537-2269799

Application:

FZK-20 type core drilling machine adopts high-speed cutting technology, equipped with thin wall diamond drill,are widely used for drilling and coring in engineering construction, municipal engineering, equipment installation engineering and construction quality inspection project and other areas



1.Coring on concrete, asphalt, limestone foundation highways, airports, ports, dams, etc ,

doing anti-compression and anti-bending test.

2. Installation of large machines drill bolt holes.

3. Install bridge handrail and traffic safety railing drilling.



Features:

1. Dual-column result, spiral feeding methods, good stability, simple effort,

Equipped with a running wheel, easy to move.

2. High-speed cutting technology and thin wall diamond drill bits, drilling cut high-                 strength concrete, high drilling efficiency, accurate holes, hole wall smooth, good quality into the hole, core samples intact smooth, little vibration, no damage to buildings


Technical Parameters:

Model FZK-20
Max drilling diameter 200MM
Max drilling depth 700MM
Output speed 800—1200RPM
Engine type Gasoline engine, air-cooled, 4 stroke, single cylinder
Power 13.0HP
Weight 110kg
Packing Size 1400*900*1500MM
