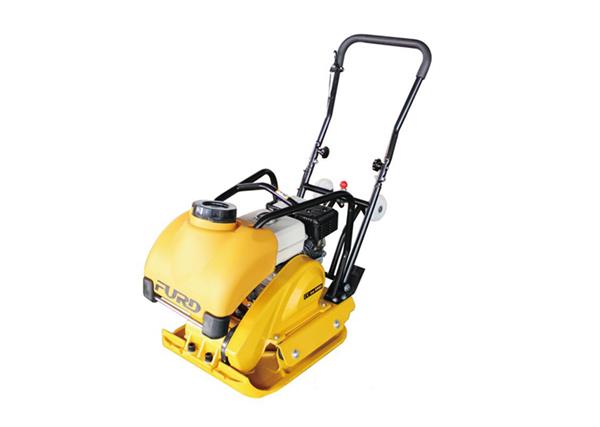

FPB-20 Forward Plate Compactor-Product-Jining Furuide Machinery Manufacturing Co., Ltd.

FEATURE
Leave a message

Application:

Mainly used for compacting newly laid, smaller asphalt surfaces

and repair jobs.Also suitable for adjustment jobs before asphalting and tiling.

Features:

1.Excellent performance, easy to start-up.

2.Forward and backward hydraulic control, which is flexible and convenient.

3.Gravity point lower, steady working condition, disposing small shifting car and hook, which is comfortable for the operators to change working directions

Technical Parameters:

Model	FPB-20	HPB-S30G	HPB-S30C
Engine	GX160	GX270	CF170
Power	5.5HP	9.0HP	5HP
Working area	430*550mm	500*690mm	500*690mm
Walking mode	One-way	Machinery double-way	Machinery double-way
Vibrating force	20KN	30KN	30KN
Frequency	70HZ	70HZ	70HZ
Grade ability	25%	25%	25%
Starting mode	Hand	Hand	Hand/electric
Packing size	760520700mm	7805601060mm	7805601060mm
weight	85kg	160kg	160kg
